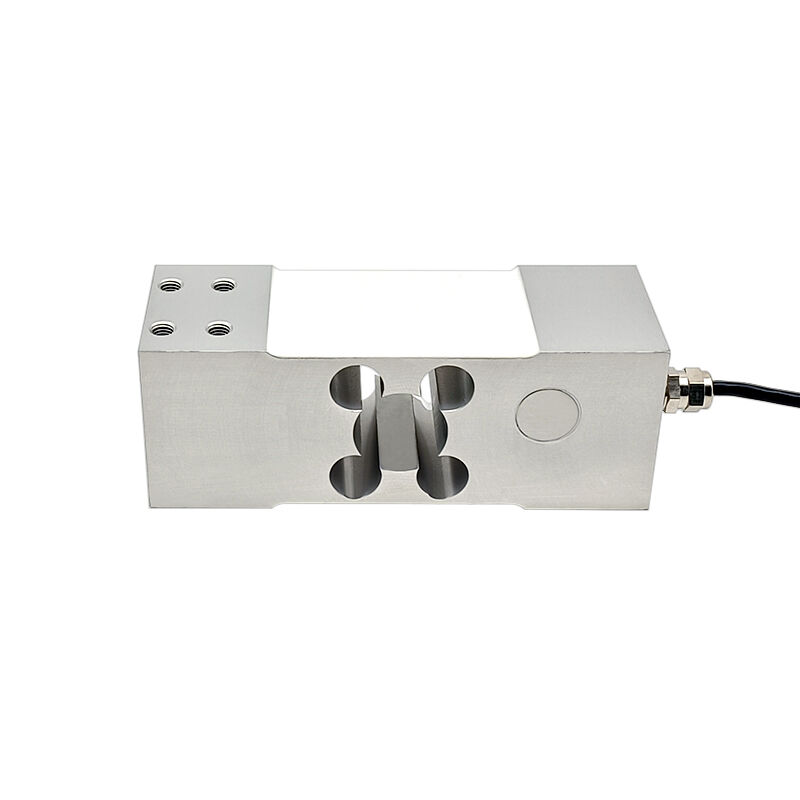

WL-118 Aluminum Alloy Single Point Load Cell 30-500kg IP65

Features & Applications

The WL-118 is a single point load cell manufactured from high-strength aluminum alloy, designed for capacities ranging from 30kg to 500kg with a maximum platform size of 600×600mm. This single point load cell offers different cable lengths and other options, making it suitable for weighing and metering in food, packaging, industrial automation, intelligent warehousing, platform scales, and automatic checkweighing systems.

With a combined error of 0.018%F.S., non-linearity of 0.02%F.S., and repeatability of 0.018%F.S., this single point load cell delivers reliable accuracy for medium to high capacity applications. Its rated output is 2.0±0.05mV/V, zero balance is ±0.2%mV/V, and insulation resistance is ≥5000MΩ/100VDC. Recommended excitation is 5~15 VDC, ensuring stable performance across diverse industrial environments.

The WL-118 single point load cell provides IP65 protection as standard, with customizable higher ratings available. It operates within -10°C to 50°C, and nominal displacement ranges from 0.6mm to 0.96mm depending on load. Standard cable is Φ5mm × 3000mm, with custom lengths available. Safe overload is 150%F.S., and the robust aluminum alloy construction ensures long-term durability.

Typical application:

• Food packaging: filling and checkweighing on packaging lines

• Industrial automation: batching and dosing systems

• Intelligent warehousing: automated weighing for inventory and logistics

• Platform scales: general-purpose weighing up to 600×600mm platform

• Automatic checkweighing: verifying product weights in high-speed production

• Chemical and pharmaceutical: small to medium container filling

Specifications:

Dimension(MM):

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the Single Point load cell will be carefully packaged and shipped. The packing process is as follows:

1. The Single Point load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The Single Point load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6.  A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
