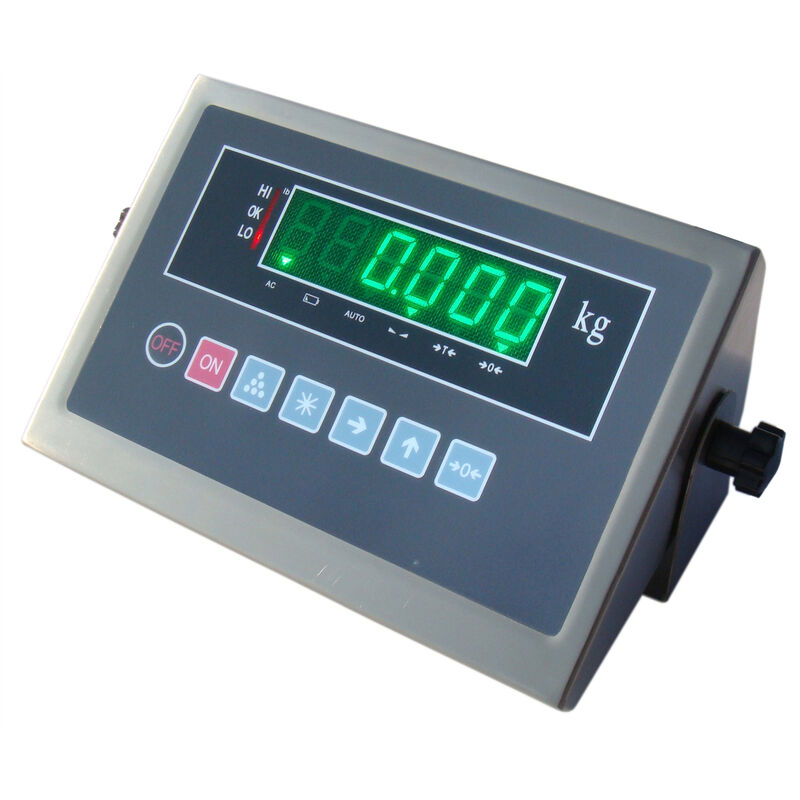

BXK315A1GB-T Green Display Weighing Indicator With Enhanced Output Control

Features

• 1. Engineered for reliable operation, this weighing indicator functions within a 0°C to 40°C temperature range.

  2. The indicator can be safely stored in environments from -25°C to 55°C.

  3. Built to withstand moisture, this weighing indicator operates in relative humidity up to 85% non-condensing.

  4. For extended portable use, the indicator delivers up to 30 hours of operation on a full battery charge.

  5. This robust weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

  6. Data collection is versatile with both manual and automatic accumulation modes on this indicator.

  7. Long-term measurement stability is ensured by the programmable zero tracking in the weighing indicator.

  8. The indicator features a programmable digital filter to enhance signal stability and accuracy.

  9. User convenience is provided with selectable kg and lb units on this weighing indicator.

  10. Standard communication is handled through an RS-232 serial interface on the indicator.

  11. For network integration, an optional RS485 serial interface is available for this weighing indicator.

  12. Precision is boosted as the accuracy of this weighing indicator can be increased tenfold.

  13. Specialized applications, such as animal weighing, are supported by this versatile indicator.

  14. A hold function on the weighing indicator allows users to freeze readings for accurate recording.

  15. The indicator includes a practical counting function for inventory and parts management.

  16. Direct printing is streamlined via the integrated printer interface of this weighing indicator.

  17. The weighing indicator offers a set two-point output function for basic process control.

  18. For complex automation, an optional four-point output is available with this indicator.




Dimensions(mm)

260×222×161mm

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
